Features and Benefits

1. Heavy impact bed for conveying equipment, higher transport and delivery of materials Dian gap larger area.

2. Rubber impact bar material may slow down when an impact force of falling from height, impact bar ultra low wear surface elements polyethylene material, reducing the friction between the conveyor belt and impact bars.

3. The design on both sides of the impac bed separable Detachable, to facilitate future maintenance, not only saves manpower, but also reduces maintenance costs

4. Impact bed on both sides of with UNHSRL- Multiply skirt rubber, the effect can be enhanced to prevent dust spills, avoid polluting the environment, their characteristics and structure, see [UNHSR- Multiply skirt rubber] product description.

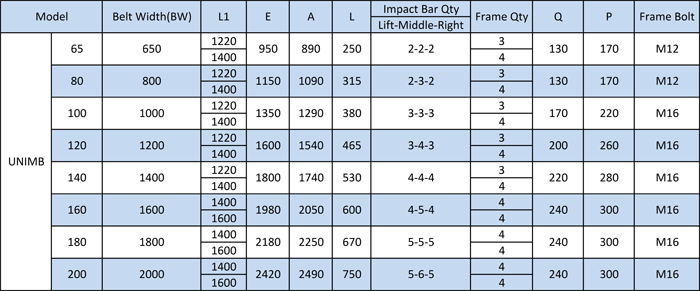

Unit: mm

Note:

1. Groove angle (θ °) and height values needs to follow trough roller design

2. Tabular data, to follow the requirements of belt conveyor design adjustment

3. Impact bar length (L1), to follow the requirements of the production design, longest 2000 mm
